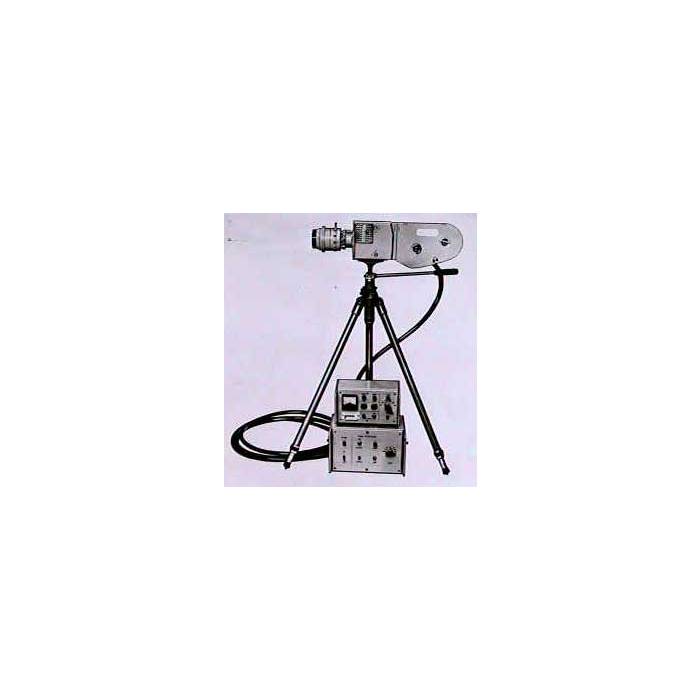

Gladiolus - Russian 35mm movie camera

$0.00
Out of stock
SKU
GLADIOLUS
It is special high-speed camera intended to work in hostile environment (corrosive medium, low temperature etc.)Here are some some specifications from manual:Film type 35mm Frame size, mm ? Film movement Dir...

It is special high-speed camera intended to work in hostile environment (corrosive medium, low temperature etc.)

Here are some some specifications from manual:

Film type 35mm
Frame size, mm ?
Film movement Direct only, in one plane
Number of films in the film channel 1
Shooting speed, fps 24, 48, 96, 144, 192, 216-240
Speed deviation, % +/-2.5
Image deviation, mm, no more
at 24-96fps
at 144-240fps

0.02
0.04
Starting time, sec, no more 3
Available lenses, F, mm 18, 28, 40, 75, 150, 300
Flange focal length? 57+0.01
Mag capacity, m 60, 120
Shutter Disc-shaped, single-blade, variable angle (30, 60, 90, 120, 145 degrees)
Drive DC motor MU-332A with tacho-generator and separate control unit
Power source DC 27V+/-2.7V with no more than 3% pulses allowed
Consumption current without heater, A, no more 32
Consumption current of the heater, A, no more 24
Control tools Footage counter, voltmeters, ammeters
Allowable temperatures, centigrade  +5 (-40 in box) to +35
Atmosphere pressure, kPa (mm of mercury) 613-1066 (460-800)
Ability to work (except power source, control unit, and remote control) after:
1. Vibration overload, Hz 10 to 200 with acceleration 50 m/sec2 (5G).
2. Continuous linear acceleration with overloads, m/sec2 (G) 40 (4)
3. Multiple impact loads with overloads, m/sec2 (G) 40 (4), impact time is 0.01sec
Dimensions (with 120m mag and 150mm lens), mm 620x180x190
Weight with 60m mag and 150mm lens, without box, kg 17
Box weight 7
Other units total weight about 23.5
