LED adapter (holder) for Zeiss microscope illuminator

Rating:
100% of 100
$34.00
In stock
Only 4 left
SKU
711332405516
WarehousesAvailable Stock
Belarus4

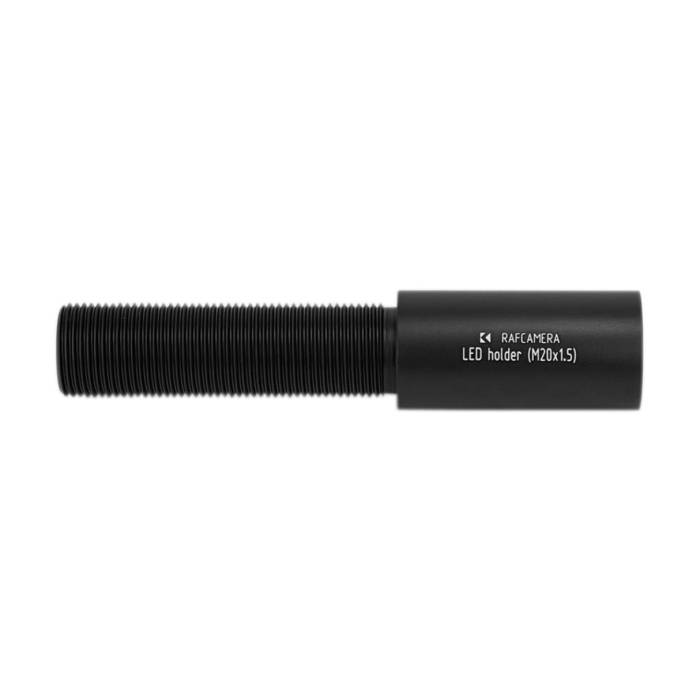

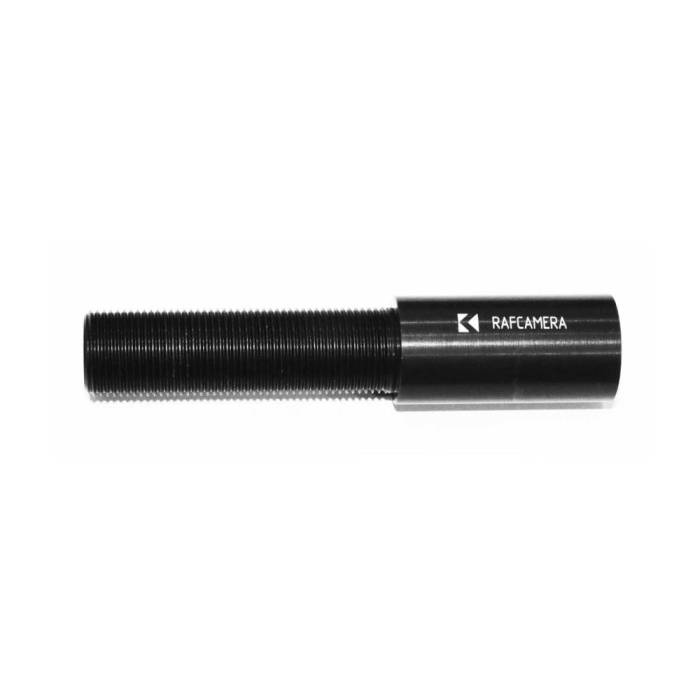

LED adapter for Zeiss microscope illuminator

This adapter allows usind bright SMD LED to illuminate microscope object field.

The LED can be mounted with screws and heat-conducting glue. Pictures show the adapter mounted with nuts and the original "Zeiss Illuminator 60W" for "Zeiss Standard" microscopes.

Such setup was tested with a high power LED. The heat sink works well up to 3W (3 V, 1000 mA). The adapter is too small for very high power (say, 10W) but at 3W it works well.
For sales is the adapter only without nuts or LED.
More Information
Adapter Front SideOther mount
Adapter Rear SideOther thread
MaterialAluminium
ManufacturerRafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
